Product nr. UI30023
Brand: VERTIV

Product description

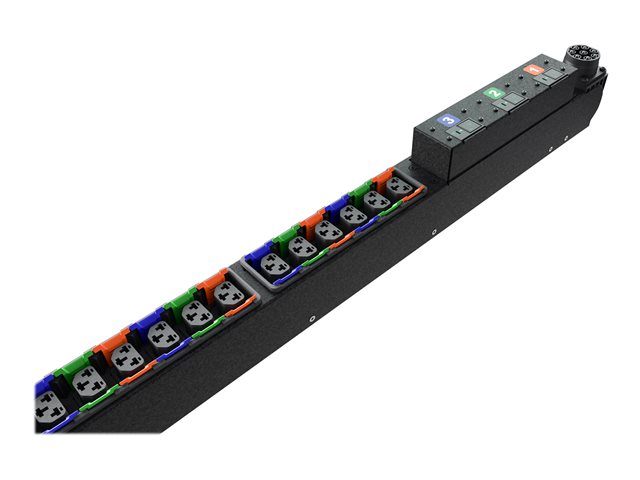

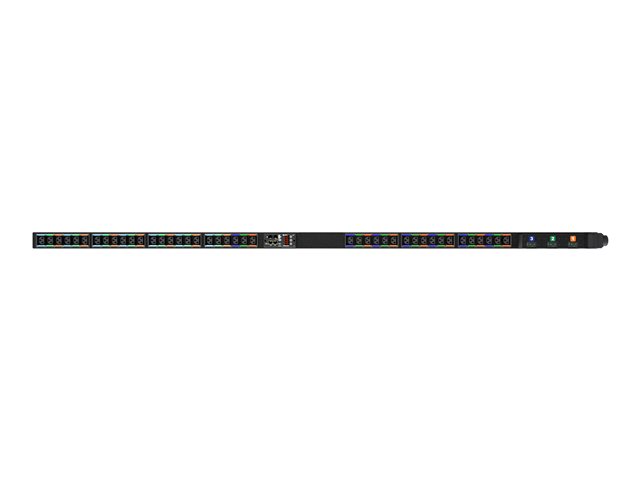

The Vertiv Geist UI30023 Universal Power Distribution Unit is a versatile rack power distribution unit with a universal input and a max power capacity of 11kW. This rack PDU enables fast and easy installation since it supports common AC power configurations ranging from 16A-60A and 120V-415V in both 1-phase and 3-phase configurations. Just choose the right Facility Side Cable (sold separately) to define the input power configuration you need to install the Geist UPDU in your network system. This model has 42 Combination C13/C19 outlets, which accommodate both C14 and C20 plugs interchangeably. The P-Lock compatible, high-retention outlets reduce the risk of costly downtime from accidental disconnections of the power cord. The unit is also ready for remote monitoring at the unit level through web or serial connection. This TAA-Compliant Vertiv UPDU comes with a standard three-year warranty, which can be extended to five years if registered within 120 days after purchase.

Specifications

General
Product code UI30023
Brand VERTIV
EAN UI30023
Power Device / Voltage Required AC 240/415
Dimensions & Weight / Width 5.1
Dimensions & Weight / Depth 5.8
Dimensions & Weight / Height 182.9
Service & Support / Type 5-year warranty with product registration
Power Device / Power Provided 11
Product Line Geist Monitored Unit Level EC
Model DU03E4W1-42CF17-1S02A9K00-S-A
Brand Geist
Power Device / Output Connector Qty 42
Manufacturer Vertiv
Verpakte hoeveelheid 1
Dimensions & Weight (Shipping) / Shipping Weight 9.98
Power Device / Max Electric Current 48
Power Device / Form Factor Rack-mountable
General / Subcategory Power distribution devices
General / Product Type Power distribution unit
Networking / Remote Management Interface USB
Networking / Remote Management Interface Ethernet 10/100/1000
Networking / Remote Management Interface USB
Miscellaneous / Colour Category Black
