Product description

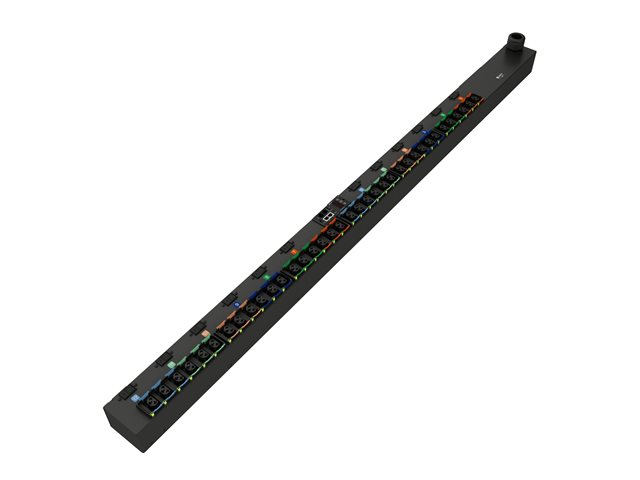

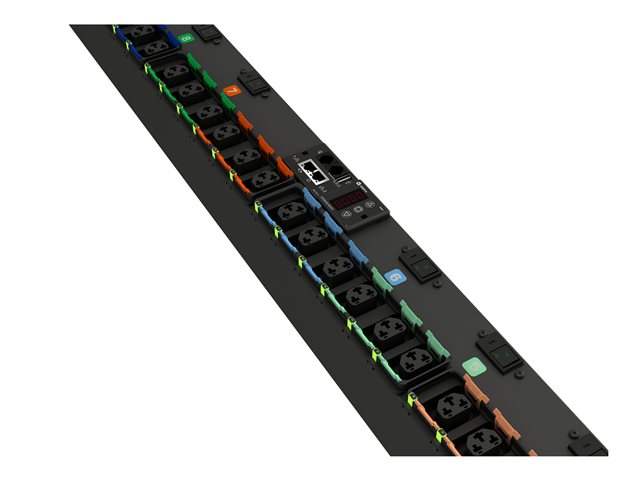

The Vertiv Geist VP6G7004 is a monitored outlet level rack power distribution unit (rPDU). It is a 63 A, 230/400 V WYE, 0U, vertical rPDU with input and outlet level power monitoring. 36 C13/C19 outlets and a 3P+N+E (IP67) plug; comes with a 3 m cord, providing 43.4 kW of power capacity. The hot-swappable Interchangeable Monitoring Device (IMD) provides unit level monitoring, serial communication, and environmental monitoring. The dual Ethernet ports simplify multiple-PDU management with fault-tolerant daisy chaining or IP aggregation capabilities. This CE-marked rPDU meets important requirements for data centers and is individually tested for functionality and reliability.
Specifications
General
| Product code | VP6G7004 |
| Brand | VERTIV |
| EAN | VP6G7004 |
| Power Device / Voltage Required | AC 230/400 |
| Dimensions & Weight / Width | 7.6 |
| Dimensions & Weight / Depth | 9.7 |
| Dimensions & Weight / Height | 168.3 |
| Service & Support / Type | 5-year warranty |
| Power Device / Power Provided | 43.4 |
| Product Line | Geist Monitored Outlet Level |
| Model | MGR3EPB1-36CF13-6PS56D2A10-S |
| Brand | Geist |
| Power Device / Output Connector Qty | 36 |
| Manufacturer | Vertiv |
| Verpakte hoeveelheid | 1 |
| Dimensions & Weight (Shipping) / Shipping Weight | 9.98 |
| Power Device / Max Electric Current | 63 |
| General / Subcategory | Power distribution devices |
| General / Product Type | Power distribution unit |
| Networking / Remote Management Interface | Ethernet 10/100/1000 |
| Networking / Remote Management Interface | USB |
| Networking / Remote Management Interface | Ethernet 10/100/1000 |
| Miscellaneous / Colour Category | Black |
