Product nr. VP5U21A0
Brand: VERTIV

Product description

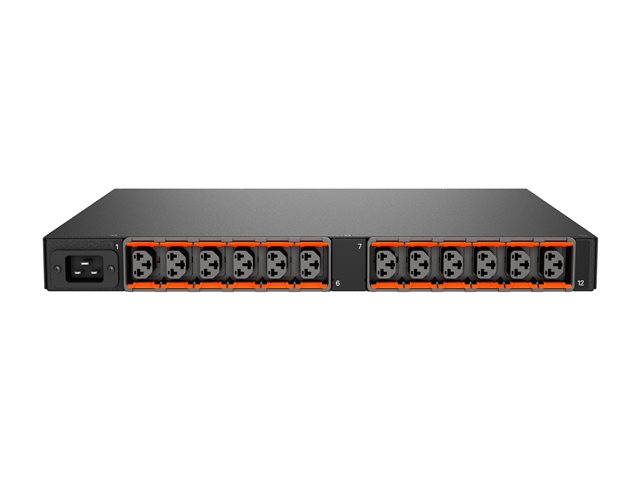

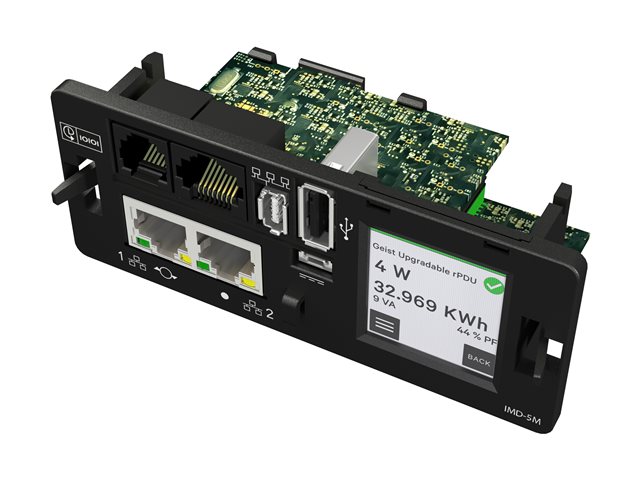

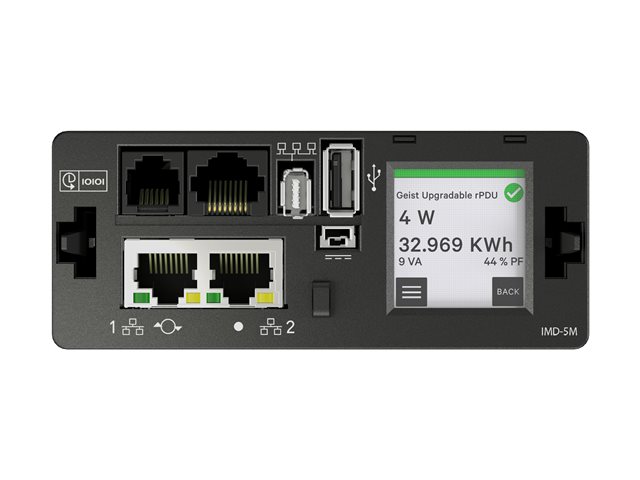

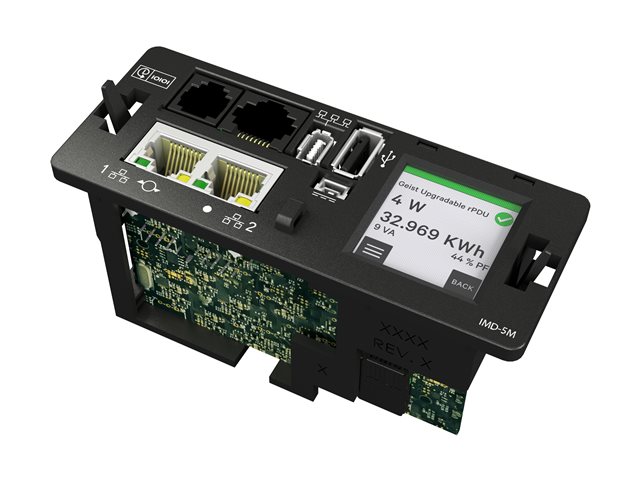

The Vertiv Geist Switched RPDU VP5U21A0 is a 16A/20A, 120V/208V/230V, 1U, horizontal rack power distribution unit with input power monitoring and outlet level switching. It has (12) combination C13/C19 outlets, a C20 inlet, and 1.9kW/3.3kW/3.6kW of power capacity. This device allows you to remotely turn off receptacles to avoid accidental overloads and power cycle equipment to reboot unresponsive critical IT equipment. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128x128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are UL Listed, CE Marked, comply with IEC 60950-1, TAA-compliant, RoHS-certified, and are individually tested for functionality and reliability.

Specifications

General
Product code VP5U21A0
Brand VERTIV
EAN VP5U21A0
Power Device / Voltage Required AC 120/208/230
Dimensions & Weight / Width 43.2
Dimensions & Weight / Depth 30.5
Dimensions & Weight / Height 4.4
Power Device / Voltage Provided AC 100-240
Service & Support / Type 5-year warranty
Power Device / Power Provided 3.6
Product Line Geist Switched Unit Level Monitoring
Model MUS5M1R5-12CF17-2C20A9H00-S
Brand Geist
Power Device / Output Connector Qty 12
Manufacturer Vertiv
Verpakte hoeveelheid 1
Dimensions & Weight (Shipping) / Shipping Weight 4.54
Power Device / Max Electric Current 20
Power Device / Form Factor Rack-mountable
General / Subcategory Power distribution devices
General / Product Type Power distribution unit
Networking / Remote Management Interface Ethernet 10/100/1000
Networking / Remote Management Interface USB
Networking / Remote Management Interface Ethernet 10/100/1000
Miscellaneous / Colour Category Brown
Power Device / Cord Length 3
