Product description

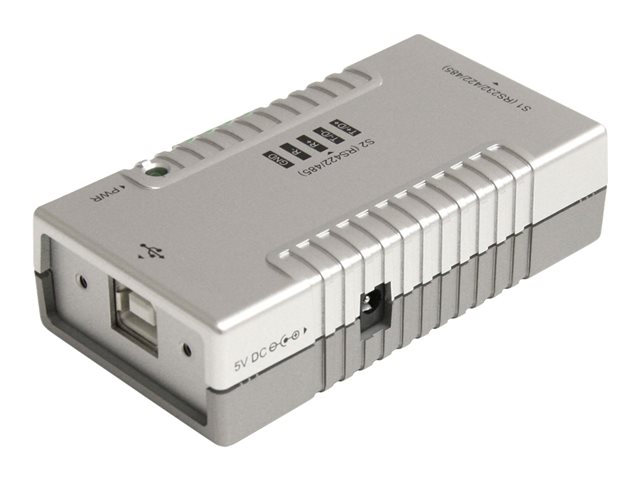

Add RS232, RS422 and RS485 support to your laptop or desktop computer via USB. The ICUSB2324852 2 Port USB to RS232 RS422 RS485 Serial Adapter with COM Retention lets you connect every type of serial device to your USB-enabled computer, whether it be for RS232, RS422, or RS485 communication. The adapter features a 9-pin (DB9) male and a 5-pin terminal block serial connector as well as dip-switch controls for easy port configuration with minimal software requirements. The adapter also supports using 2 ports simultaneously, including with mixed protocols; for example RS-232 on port 1, and RS-485 on port 2, or a number of other combinations. For a convenient, and clean installation in office or industrial settings, the RS232/RS422/RS485 USB Adapter is wall-mountable and fully powered via the host USB connection, providing power to the attached serial device without requiring an external power adapter.
Specifications
General
| Product code | ICUSB2324852 |
| Brand | STARTECH |
| EAN | ICUSB2324852 |
| Networking / Type | Serial adapter |
| Networking / Interface (Bus) Type | USB 2.0 |
| Networking / Connectivity Technology | Wired |
| Networking / Data Transfer Rate | 921.6 |
| Networking / Data Link Protocol | RS-232 |
| Networking / Data Link Protocol | RS-485 |
| Networking / Data Link Protocol | RS-485 |
| Dimensions & Weight / Width | 4.4 |
| Dimensions & Weight / Depth | 8.2 |
| Dimensions & Weight / Height | 2.3 |
| Dimensions & Weight / Weight | 300 |
| System Requirements / OS Required | Microsoft Windows XP |
| System Requirements / OS Required | Microsoft Windows Server 2019 |
| System Requirements / OS Required | Microsoft Windows Server 2019 |
| System Requirements / OS Required | Microsoft Windows CE 5.0 |
| System Requirements / OS Required | Apple macOS 11.0 |
| System Requirements / OS Required | Apple macOS 12.0 |
| System Requirements / OS Required | Microsoft Windows CE 4.2 |
| System Requirements / OS Required | Apple macOS 13.0 |
| System Requirements / OS Required | Windows 10 (32/64 bits) |
| System Requirements / OS Required | Linux 2.4.x of hoger |
| System Requirements / OS Required | Microsoft Windows CE 6.0 |
| System Requirements / OS Required | VMware vSphere 6.0 update 2 |
| System Requirements / OS Required | VMware ESXi 6.7 |
| System Requirements / OS Required | Microsoft Windows XP Embedded |
| System Requirements / OS Required | Microsoft Windows Server 2016 |
| System Requirements / OS Required | Microsoft Windows Server 2003 |
| System Requirements / OS Required | Microsoft Windows 2000/XP/Vista/7/8/8.1/10 |
| System Requirements / OS Required | Microsoft Windows Server 2019 |
| Service & Support / Type | 2-year warranty |
| Product Line | StarTech.com |
| Model | 2-poort USB naar RS232 RS422 RS485 Seriële Adapter met COM-behoud |
| Brand | StarTech.com |
| Manufacturer | StarTech.com |
| Verpakte hoeveelheid | 1 |
| Miscellaneous / Colour Category | Grey |
