Product description

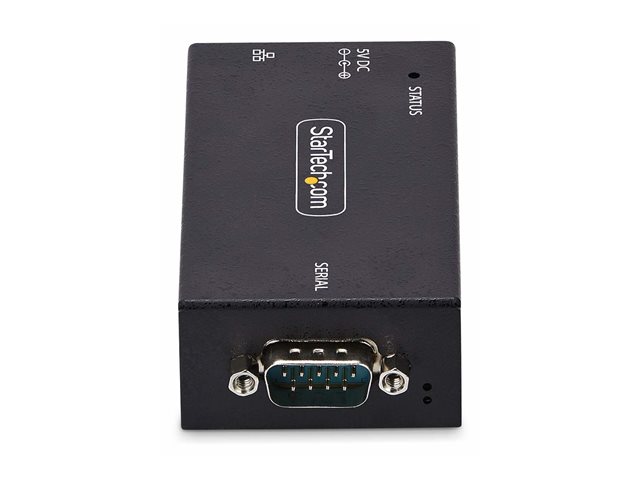

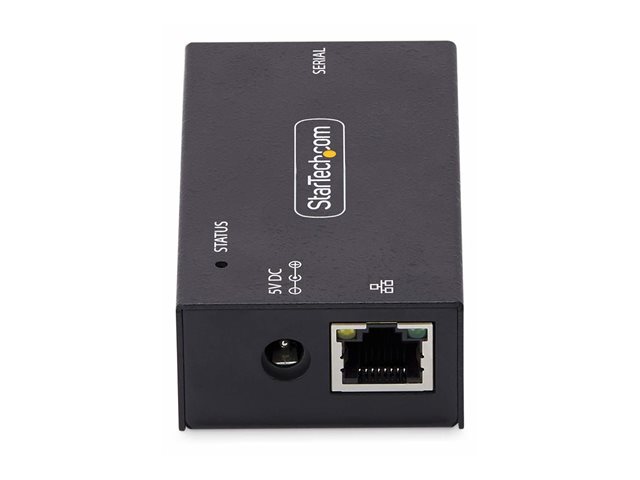

The StarTech.com Serial to Ethernet Adapter is a versatile, high-performance device designed to integrate RS232 serial devices into an IP-based Ethernet network. This adapter features a robust design that includes a DB-9 connector for RS-232 serial connection and an RJ-45 port for 100Base-TX Ethernet connection, making it ideal for a variety of industrial and commercial applications. With its wide operating temperature range (0°C to 60°C) and humidity tolerance (5 - 95% RH, non-condensing), it's built to perform reliably in challenging environments.
The adapter is engineered with advanced protection against electrostatic discharge, including 15 KV and 8 KV protection, ensuring the safety and longevity of your network equipment. It also boasts a comprehensive set of networking features, such as adjustable parity, auto-negotiation, and full duplex capability, enhancing its functionality and integration capabilities. Furthermore, its compliance with key industry standards, including EIA/TIA-232 and IEEE 802.3, ensures compatibility with a wide range of devices and networks. Whether you're looking to connect serial devices to an Ethernet network for remote management or integrate legacy equipment into modern infrastructures, this adapter offers a reliable, efficient solution.
Specifications
General
| Product code | I13-SERIAL-ETHERNET |
| Brand | STARTECH |
| EAN | I13-SERIAL-ETHERNET |
| Networking / Type | Device server |
| Networking / Form Factor | Wall / DIN rail mountable |
| Networking / Connectivity Technology | Wired |
| Networking / Data Transfer Rate | 921.6 |
| Networking / Data Link Protocol | Fast Ethernet |
| Networking / Data Link Protocol | LTE |
| Networking / Data Link Protocol | RS-232 |
| Networking / Network / Transport Protocol | Telnet |
| Networking / Network / Transport Protocol | UDP |
| Networking / Network / Transport Protocol | TCP |
| Networking / Remote Management Protocol | Telnet |
| Networking / Remote Management Protocol | Telnet |
| Dimensions & Weight / Width | 8.2 |
| Dimensions & Weight / Depth | 4.6 |
| Dimensions & Weight / Height | 2.5 |
| Dimensions & Weight / Weight | 155 |
| System Requirements / OS Required | Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 |
| Service & Support / Type | 2-year warranty |
| Product Line | StarTech.com |
| Model | Serial to Ethernet Adapter, IP LAN to RS232 DB9 Converter |
| Brand | StarTech.com |
| Manufacturer | StarTech.com |
| Verpakte hoeveelheid | 1 |
| Dimensions & Weight (Shipping) / Shipping Width | 24.2 |
| Dimensions & Weight (Shipping) / Shipping Depth | 16.6 |
| Dimensions & Weight (Shipping) / Shipping Height | 5.5 |
| Dimensions & Weight (Shipping) / Shipping Weight | 500 |
| Miscellaneous / TAA Compliant | Yes |
| Miscellaneous / Colour Category | Brown |
