Product description
Capture a High-Definition HDMI, DVI, VGA, or Component Video source to your PC. This USB 3.0 external video capture device lets you record 1080p HD video and stereo audio to your computer system. With multiple video inputs including HDMI, DVI, VGA and component, the capture card can record original content from various sources such as computers, camcorders, security systems, POS terminals, and servers. With a framerate of 60 FPS (frames per second) and H.264 encoding, this is the perfect solution for capturing high-definition video for editing, compiling, and archiving.
Record lossless video at 60 FPS ensuring every frame of content is saved, unlike 30-frame-per-second capture devices that only catch half the action. 60 FPS exactly matches the output of most computer video cards, which is great for recording the output from your PC, server, or POS station when creating software training and tutorial videos.
The included software encodes in H.264, the most widely adopted video codec in the world, ensuring your video captures will be compatible with almost any device platform such as PC, Mac, iOS and Android with no editing or converting required. H.264 is also widely supported by most software titles including Adobe Premiere and Windows Media Encoder. Plus, the software not only lets you capture and export videos, but it also lets you take screenshots, schedule recordings and instantly stream your video source over the Internet using online services such as Twitch.
This USB capture card is capable of capturing lossless raw video making it compatible with Microsoft DirectShow. With raw video capture you can record video using your preferred third party DirectShow software such as Open Broadcaster Software (OBS).

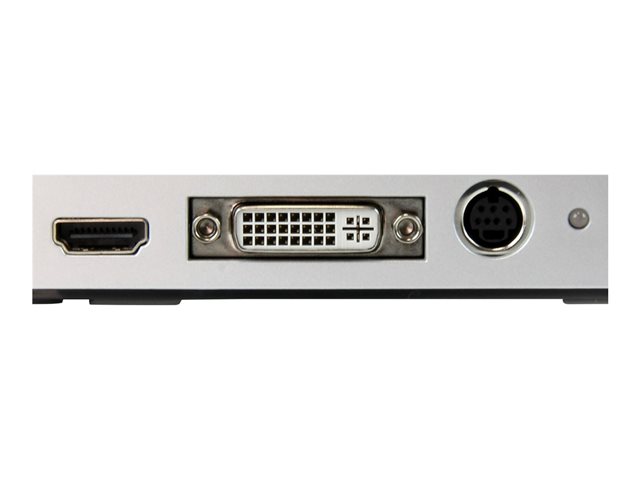

With multiple A/V input options you can capture from a wide variety of sources including HDMI, DVI, VGA, and component. You can also use this capture card with A/V adapters to record other video sources such as SDI using the SDI to HDMI converter (SDI2HD). Support for a variety of A/V devices is ideal for archiving analog video footage into a digital database.
The device also includes easy-to-use software that's compatible with NTSC and PAL systems, making it a must for professional video archiving applications where source media can change from project to project.
A computer that supports USB 3.0 or higher is required. This product will not work with USB 2.0 or 1.1 controllers. Will not record digitally encrypted content. Not compatible with ASmedia, or Etron USB 3.0 host controllers. If your system has one of these non-supported controllers you can alternatively add a PCI-express USB 3.0 controller card such as the StarTech.com PEXUSB3S4V, PEXUSB3S400 or PEXUSB3S4.
Specifications
General
| Product code | USB3HDCAP |
| Brand | STARTECH |
| EAN | USB3HDCAP |
| Input Device / Input Adapter Type | Video capture adapter |
| Input Device / Form Factor | External |
| Video Input / Analogue Video Format | SECAM |
| Video Input / Analogue Video Format | NTSC 3.58 |
| Video Input / Analogue Video Format | PAL-M |
| Video Input / Analogue Video Format | PAL 60 |
| Video Input / Analogue video Signal | Composite video |
| Video Input / Analogue video Signal | Component video |
| Video Input / Digital Video Format | H.265 |
| Video Input / Digital Video Format | H.264 |
| Video Input / Audio Input Support | Standard |
| Dimensions & Weight / Width | 11.44 |
| Dimensions & Weight / Depth | 8.39 |
| Dimensions & Weight / Height | 2.45 |
| Dimensions & Weight / Weight | 170 |
| Miscellaneous / Colour | Black |
| System Requirements / OS Required | Microsoft Windows Server 2003 |
| System Requirements / OS Required | Windows 10 IoT Enterprise 64-bit Edition Retail |
| System Requirements / OS Required | Microsoft Windows XP (32-/64-bits) |
| System Requirements / OS Required | Windows 8 (32/64 bits) |
| System Requirements / OS Required | Windows 8.1 (32/64 bits) |
| System Requirements / OS Required | Windows 10 (32/64 bits) |
| Service & Support / Type | 2-year warranty |
| Video Input / Interface Type | Composite video input |
| Video Input / Interface Type | Composietvideo-/audio-ingang |
| Video Input / Interface Type | Component video-invoer |
| Video Input / Interface Type | DVI-Analoge/Digitale ingang |
| Video Input / Interface Type | HDMI input |
| Video Input / Interface Type | VGA-invoer |
| Product Line | StarTech.com |
| Model | USB 3.0 videorecorder - HDMI / DVI / VGA / Component HD video-opname apparaat - 1080p 60 fps |
| Brand | StarTech.com |
| Manufacturer | StarTech.com |
| Input Device / Interface Type | SuperSpeed USB 3.0 |
| Verpakte hoeveelheid | 1 |
| Miscellaneous / Colour Category | Black |
