Product description
Providing centralized control of your single PC or dozens of servers, this dual rail rackmount KVM console also gives you easy access to and visibility of your system while it's mounted in a server rack or cabinet.

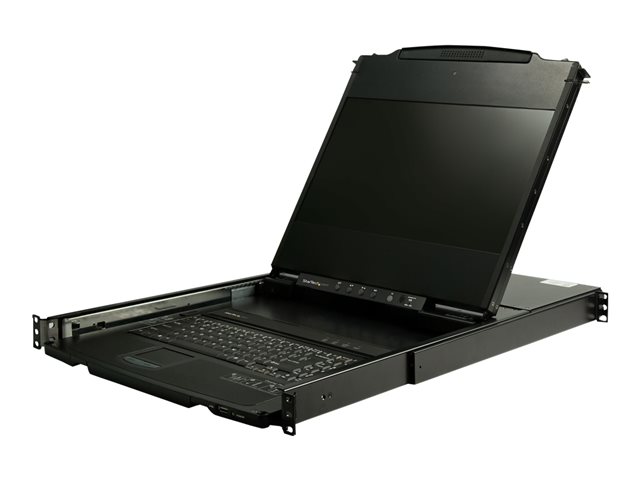

The dual rail KVM console design maximizes space in your datacenter's rack cabinets by allowing the LCD monitor and the keyboard/mouse to move separately from each other. You can tuck the keyboard away while the display stays active, allowing you to conveniently monitor your computer through closed glass or mesh rack cabinet doors.
The 1080p KVM console is 17.3" and LED back-lit, for low power consumption. It supports high definition resolutions up to 1920x1080 providing sharper video performance.
Whether you are running a multi-port KVM with an analog display or a single port KVM with a high definition display, this DVI/ VGA KVM console can support both signals.

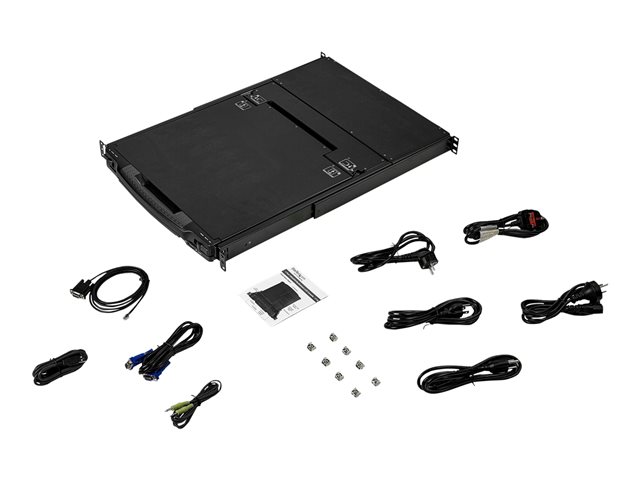

This KVM console comes with everything you need to set up: 1 Audio Cable; 1 Set of KVM Cables (USB/VGA); 2 Rear Mounting Brackets; M5 Cage Nuts and Screws.
Once your KVM console is mounted to your rack, you can use the USB port on the front to easily connect any USB compatible peripheral such as a fingerprint scanner or mouse thumb drive.
StarTech.com offers a wide selection of KVM consoles to help you access your systems more efficiently without the expense and clutter of extra peripherals.
Specifications
General
| Product code | RKCOND17HD |
| Brand | STARTECH |
| EAN | RKCOND17HD |
| Display / Form Factor | Rack-mountable |
| Display / Diagonal Size | 17.3 |
| Display / Pixel Pitch | 0.199 |
| Display / Native Resolution | 1920 x 1080 |
| Display / V-Sync Rate at Max Res. | 60 |
| Display / Image Brightness | 250 |
| Display / Image Contrast Ratio | 650:1 |
| Display / Horizontal Viewing Angle | 140 |
| Display / Vertical Viewing Angle | 120 |
| Input Device / Type | Force Touch trackpad |
| Input Device / Type | Membrane keyboard |
| Audio Output / Type | None |
| Networking / Type | KVM switch |
| Dimensions & Weight / Width | 48 |
| Dimensions & Weight / Depth | 72.7 |
| Dimensions & Weight / Height | 4.4 |
| Dimensions & Weight / Weight | 12 |
| Miscellaneous / Colour | Black |
| Miscellaneous / Compliant Standards | CB |
| Miscellaneous / Compliant Standards | TUV Rheinland Flicker Free Certification |
| Miscellaneous / Compliant Standards | cUL |
| Service & Support / Type | 2-year warranty |
| Networking / Ports Qty | 1 |
| Product Line | StarTech.com |
| Model | Dual Rail KVM Rack Console, HD 1080p, Single Port DVI/VGA KVM met 17" LCD Scherm voor Server Rack, Universele 1U LCD KVM Console met Kabels, USB Support, 44230 MTBF (RKCOND17HD) |
| Country Kits | Europe |
| Country Kits | Japan |
| Country Kits | Nieuw-Zeeland |
| Country Kits | Noord-Azië |
| Country Kits | Europe |
| Country Kits | Europe |
| Brand | StarTech.com |
| Manufacturer | StarTech.com |
| Verpakte hoeveelheid | 1 |
| Display / Response Time | 8 |
| Display / Interface | DisplayPort |
| Display / Interface | HDMI |
| TV Tuner / TV Tuner Presence | No |
| Display / Diagonal Size (metric) | 43.9 |
| Display / Colour Support | 262,144 colours |
| Miscellaneous / Colour Category | Black |
| Display / Type | KVM console |
| Display / Video Format | Full HD (1080p) |
