Product description

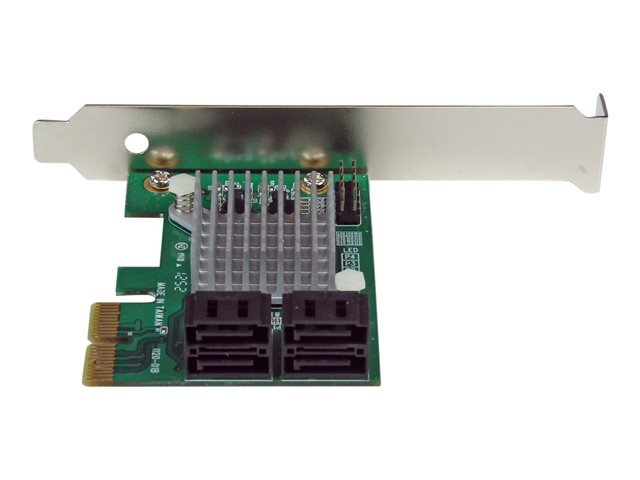

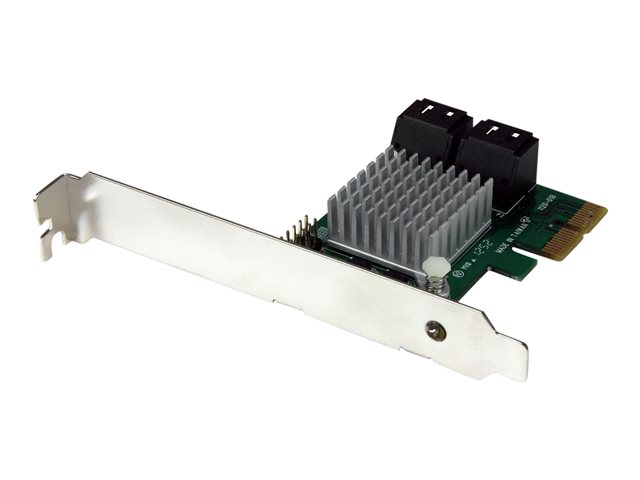

Add 4 Internal SATA III (6Gbps) ports to a computer through a PCI Express x2 slot. The PEXSAT34RH 4-Port PCI Express 2.0 SATA Controller Card with HyperDuo adds 4 AHCI SATA III ports to a computer through a PCIe slot (x2), delivering multiple internal 6Gbps connections for high-performance hard drives and Solid State Drives (SSDs).
Featuring HyperDuo technology, the SATA card offers SSD auto-tiering which lets you balance the performance advantages of SSD storage with the cost-effectiveness and large capacity of standard hard drives. By combining SSD and HDD drives into a single volume (up to 3 SSD + 1 HDD), HyperDuo discreetly works in the background to identify and move frequently accessed files to the faster SSD drive(s) for improved data throughput - up to 80% of SSD performance! (Note: The HyperDuo automatic storage tiering feature is compatible with computers that use a BIOS.)
The PCIe SATA controller card supports Port Multiplier (PM), enabling multiple SATA drives to be connected to one port over a single cable, for a total of 7 drives (Up to 4 drives through PM on one port, and a single drive to the remaining 3 ports). Plus, the SATA controller card offers an effective hardware RAID solution, with native RAID (0, 1, 1+0) support.
Specifications
General
| Product code | PEXSAT34RH |
| Brand | STARTECH |
| EAN | PEXSAT34RH |
| Storage Controller / Form Factor | Plug-in card |
| Storage Controller / Supported Devices | Solid state drive |
| Storage Controller / RAID Level | JBOD |
| Storage Controller / RAID Level | RAID 10 |
| Storage Controller / RAID Level | RAID 10 |
| Storage Controller / RAID Level | JBOD |
| Dimensions & Weight / Width | 12 |
| Dimensions & Weight / Depth | 7 |
| Dimensions & Weight / Height | 2 |
| Dimensions & Weight / Weight | 49 |
| System Requirements / OS Required | Windows 10 (32/64 bits) |
| System Requirements / OS Required | Apple MacOS X 10.6 |
| System Requirements / OS Required | Microsoft Windows Server 2003 |
| System Requirements / OS Required | Windows 10 IoT Enterprise 64-bit Edition Retail |
| System Requirements / OS Required | Microsoft Windows XP (32-/64-bits) |
| System Requirements / OS Required | Apple MacOS X Lion 10.7 |
| System Requirements / OS Required | Apple OS X 10.11 El Capitan |
| System Requirements / OS Required | Windows 8 (32/64 bits) |
| System Requirements / OS Required | Windows 10 (32/64 bits) |
| Service & Support / Type | 2-year warranty |
| Product Line | StarTech.com |
| Model | 4-poorts PCI Express 2.0 SATA III 6 Gbps RAID-controllerkaart met HyperDuo SSD Tiering |
| Brand | StarTech.com |
| Manufacturer | StarTech.com |
| Storage Controller / Channel Qty | 4 |
| Verpakte hoeveelheid | 1 |
| General / Product Type | Storage controller (RAID) |
| Miscellaneous / Colour Category | Brown |
| Storage Controller / Host Bus | PCIe 2.0 x2 |
| Storage Controller / Interface | SATA 6Gb/s |
