Product description

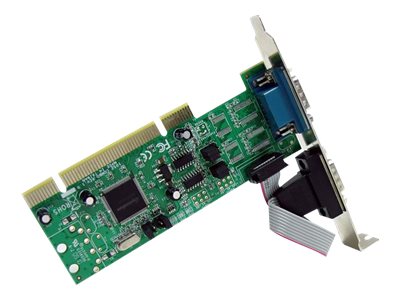

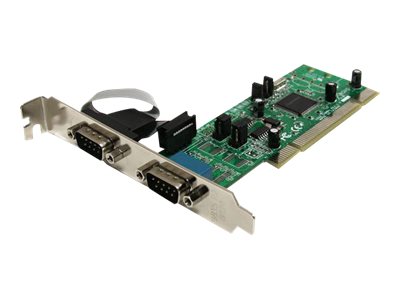

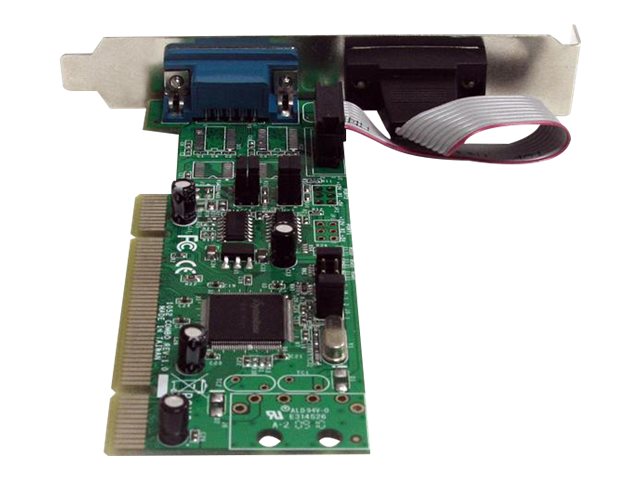

Add two RS422/485 serial ports through a standard or low profile PCI expansion slot. The PCI2S4851050 2-Port PCI Serial Adapter Card (RS422/RS485) with 161050 UART adds two DB9 RS422/RS485 serial ports, using a single PCI expansion slot.
The PCI serial card offers a high performance 16C1050 UART and supports both 2-wire and 4-wire RS485 modes. The card delivers an efficient single-chip design and a large 256-byte transit/receive FIFO buffer that work together to provide high-speed serial communication while reducing the overall load on the system CPU.
With the included standard and low profile/half-height brackets, this PCI serial expansion card suits a broad range of system form factors, and is a perfect addition for connecting RS422/485 serial devices to a host computer. For added versatility, the RS422/RS485 adapter is able to accommodate 3.3 or 5V PCI/PCI-X slots.
Specifications
General
| Product code | PCI2S4851050 |
| Brand | STARTECH |
| EAN | PCI2S4851050 |
| Networking / Type | Serial adapter |
| Networking / Interface (Bus) Type | PCI-X |
| Networking / Data Link Protocol | RS-485 |
| Networking / Data Link Protocol | RS-485 |
| Dimensions & Weight / Width | 4.5 |
| Dimensions & Weight / Depth | 12 |
| Dimensions & Weight / Height | 1.8 |
| Dimensions & Weight / Weight | 56 |
| Service & Support / Type | Limited lifetime warranty |
| Product Line | StarTech.com |
| Model | 2-poort PCI RS422/485 Seriële Adapter-kaart met 16550 UART |
| Brand | StarTech.com |
| Manufacturer | StarTech.com |
| Verpakte hoeveelheid | 1 |
