Product description

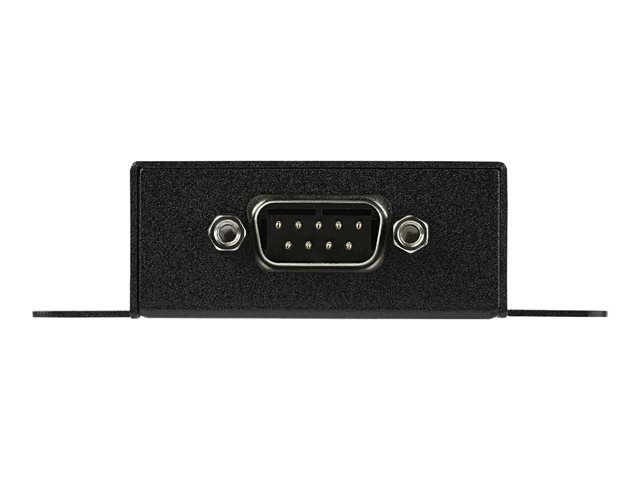

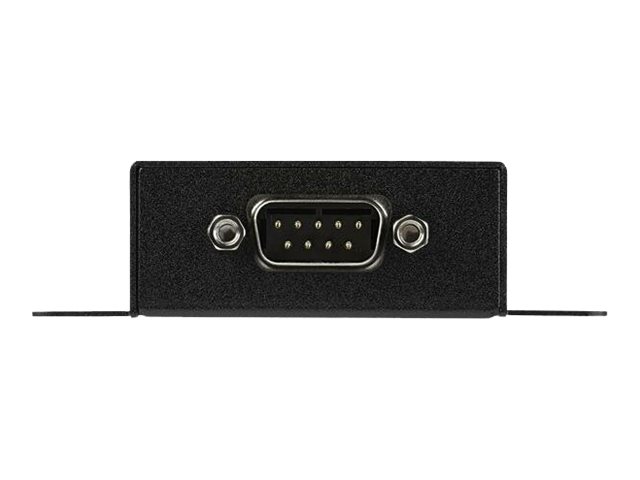

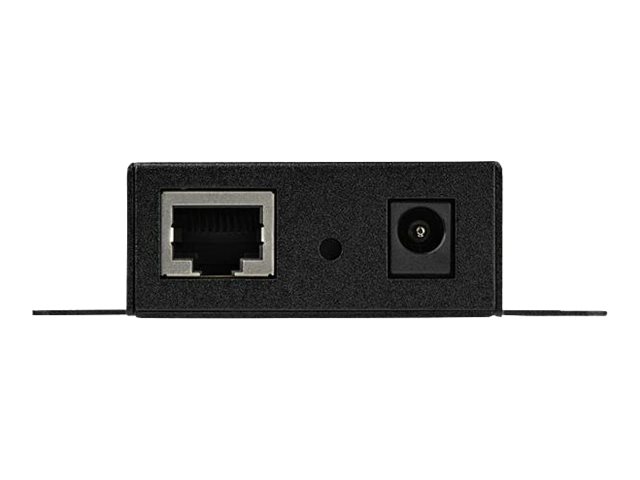

Connect to, configure and remotely manage an RS-232 serial device over an IP network. This 1-port serial device server is an effective serial-over-IP solution that lets you connect to, configure, and remotely manage an RS232 serial device over a LAN (Local Area Network).
The versatile device server is designed to function seamlessly with your integrated serial ports, while offering baud rates faster than many other device servers (up to 460.8Kbps).The device server provides the tools you need to communicate with remote RS-232 devices as if they were directly connected.
It offers versatile browser-based or Virtual COM port software configuration for customizing the device to suit your application. Plus, the software communicates directly with the device server, so it can be used in Virtual Machine (VM) environments if you have multiple VMs sharing the same set of hardware.
The device server also offers remote Telnet configuration and support for IP, HTTP, ICMP, DHCP, ARP, TCP and UDP protocols.
With a sturdy aluminum housing and DIN rail or surface mounting brackets, the serial device server provides a durable remote serial interface for industrial automation, security, Point of Sale and many other applications.
Specifications
General
| Product code | NETRS2321P |
| Brand | STARTECH |
| EAN | NETRS2321P |
| Networking / Type | Device server |
| Networking / Form Factor | DIN rail mountable |
| Networking / Connectivity Technology | Wired |
| Networking / Data Transfer Rate | 460.8 |
| Networking / Data Link Protocol | Fast Ethernet |
| Networking / Data Link Protocol | LTE |
| Networking / Data Link Protocol | RS-232 |
| Networking / Network / Transport Protocol | IPSec |
| Networking / Network / Transport Protocol | UDP/IP |
| Networking / Network / Transport Protocol | ARP |
| Networking / Network / Transport Protocol | DHCP |
| Networking / Network / Transport Protocol | ICMP/IP |
| Networking / Remote Management Protocol | Telnet |
| Networking / Remote Management Protocol | HTTP |
| Dimensions & Weight / Width | 5.3 |
| Dimensions & Weight / Depth | 8.1 |
| Dimensions & Weight / Height | 2.3 |
| Dimensions & Weight / Weight | 295 |
| System Requirements / OS Required | Windows 10 (32/64 bits) |
| System Requirements / OS Required | Windows 10 (32/64 bits) |
| System Requirements / OS Required | VMware vSphere 6.0 update 2 |
| System Requirements / OS Required | VMware ESXi 6.7 |
| System Requirements / OS Required | Microsoft Windows Server 2016 |
| System Requirements / OS Required | Microsoft Windows Server 2003 |
| System Requirements / OS Required | Microsoft Windows 2000/XP/Vista/7/8/8.1/10 |
| System Requirements / OS Required | Microsoft Windows Server 2019 |
| Service & Support / Type | 2-year warranty |
| Product Line | StarTech.com |
| Model | 1-poorts serieel-over-IP Ethernet apparaatserver - RS232 - DIN Rail en oppervlakte monteerbaar - aluminium |
| Country Kits | North America |
| Country Kits | Europe |
| Country Kits | Europe |
| Brand | StarTech.com |
| Manufacturer | StarTech.com |
| Verpakte hoeveelheid | 1 |
