Product description

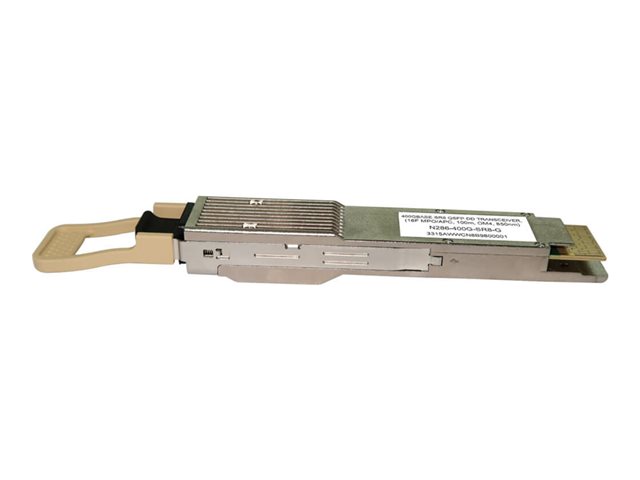

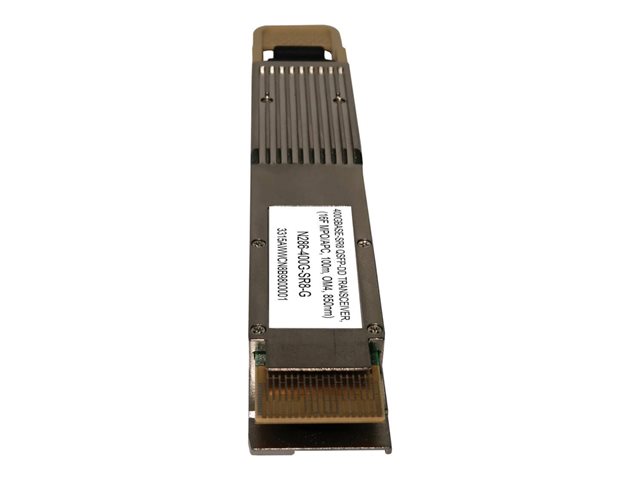

This QSFP-DD transceiver allows you to connect a multimode fiber optic cable to a 400 Gbps network router, server or switch. It transmits data up to 100 meters (328.08-ft.) using an 850 nm wavelength. The zinc housing protects against electromagnetic interference (EMI) and excessive power dissipation.
The MSA-compliant N286-400G-SR8-G functions just like the equivalent Cisco 400GBASE-SR8 transceiver module and other OEM modules is manufactured to meet or exceed Cisco specifications. You can use this transceiver with any compatible router, server or switch and receive the same performance as the 400GBASE-SR8.

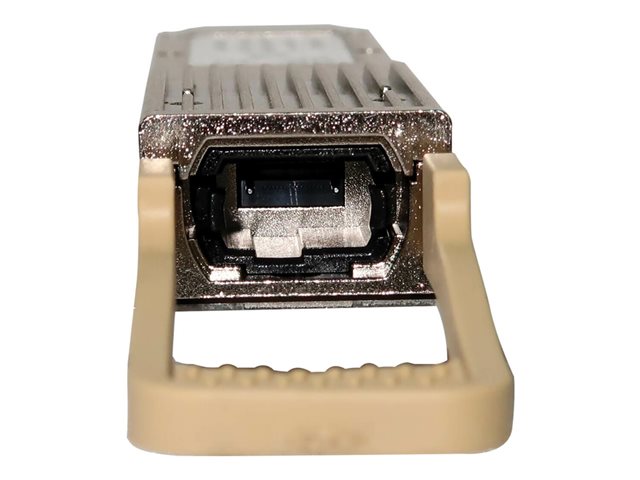

This input/output device is fully hot-swappable, so you can install it without a potentially costly 400 Gbps network shutdown or device reboot. Just plug the QSFP-DD end of the transceiver into your network device. The other end has an MTP/MPO connector to link with multimode fiber cable (sold separately). A push/pull tab connector is easily accessible in high-density data center applications and makes the plug-and-play transceiver easy to install and remove with one hand.
DDM support lets you keep track of various operating status in real time including transceiver temperature, input and output power, and supply voltage.
Specifications
General
| Product code | N286-400G-SR8-G |
| Brand | EATON |
| EAN | N286-400G-SR8-G |
| Networking / Type | QSFP-DD transceiver module |
| Networking / Form Factor | Plug-in module |
| Networking / Connectivity Technology | Wired |
| Networking / Data Transfer Rate | 400 |
| Networking / Data Link Protocol | 400 Gigabit Ethernet |
| Dimensions & Weight / Weight | 50 |
| Service & Support / Type | 3-year warranty |
| Product Line | Eaton Tripp Lite Series |
| Model | QSFP-DD Transceiver - 400GBase-SR8, MPO/APC MMF, 400 Gbps, 850 nm, 100 m (328 ft.) |
| Brand | Eaton |
| Manufacturer | Eaton |
| Networking / Cabling Type | Ethernet 400GBase-SR8 |
| Verpakte hoeveelheid | 1 |
