Product nr. VP7G9004
Brand: VERTIV

Product description

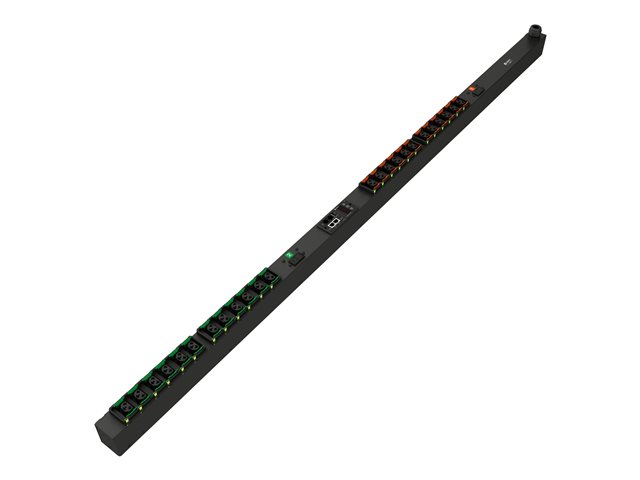

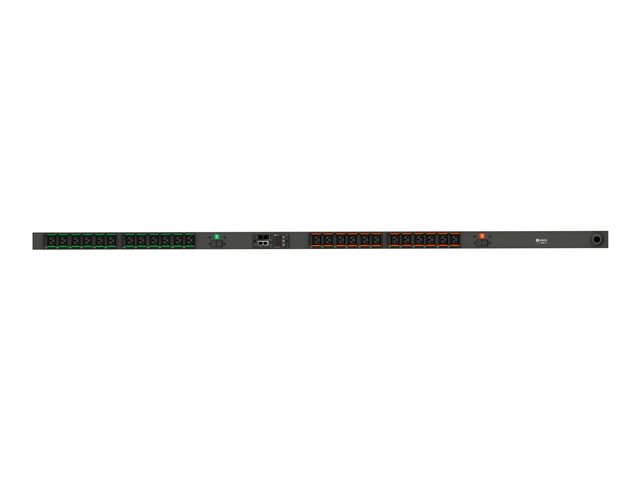

The Vertiv Geist GU2 VP7G9004 is a 32 A, 230 V, single phase switched outlet level monitored rack power distribution unit (rPDU). This TAA-Compliant PDU has (24) Combination outlets C13/C19 and a 1P+N+E (IP44) plug providing 7.3kW in max power capacity. Combination Outlets C13/C19 accommodate C14 and C20 plugs interchangeably, helping ensure you can power most common IT equipment. This Switched PDU allows you to remotely turn off receptacles to avoid accidental overloads, or remotely power cycle unresponsive critical IT equipment. The hot-swappable Interchangeable Monitoring Device (IMD) displays current on the local LED display. Visible Light Communication (VLC) technology allows you to view complete power usage data locally from a mobile device with the Vertiv rPDU Scanner app. Each rack mount PDU undergoes individual testing for functionality to ensure your network is powered by a reliable smart power strip.

Specifications

General
Product code VP7G9004
Brand VERTIV
EAN VP7G9004
Power Device / Voltage Required AC 200 - 240
Dimensions & Weight / Width 5.1
Dimensions & Weight / Depth 6.6
Dimensions & Weight / Height 168.3
Power Device / Voltage Provided AC 230
Service & Support / Type 5-year warranty with product registration
Power Device / Power Provided 7.3
Product Line Vertiv Geist Switched Outlet Level Monitoring EC
Model MGU3EGB1-24CF13-3PS6B2A10-S
Brand Vertiv
Power Device / Output Connector Qty 24
Manufacturer Vertiv
Verpakte hoeveelheid 1
Dimensions & Weight (Shipping) / Shipping Weight 9.07
Power Device / Max Electric Current 32
Power Device / Form Factor Rack-mountable
General / Subcategory Power distribution devices
General / Product Type Power distribution unit
Networking / Remote Management Interface Ethernet 10/100/1000
Networking / Remote Management Interface USB
Networking / Remote Management Interface Ethernet 10/100/1000
Miscellaneous / Colour Category Grey
Power Device / Cord Length 3
