Product description

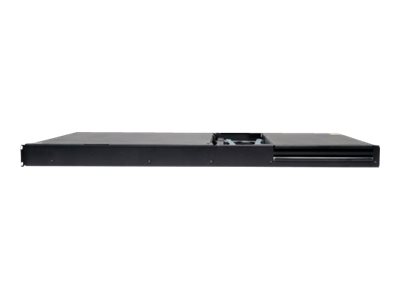

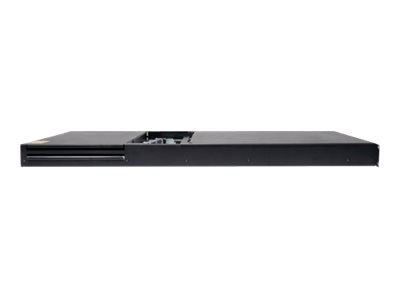

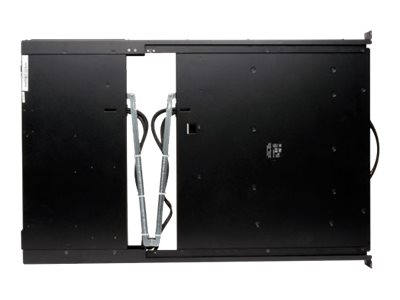

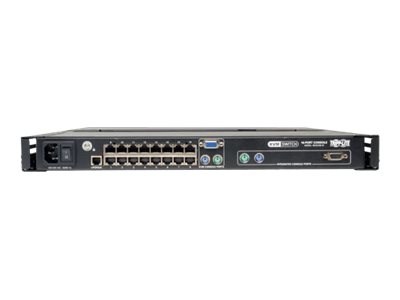

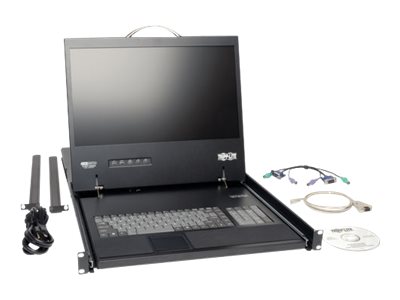

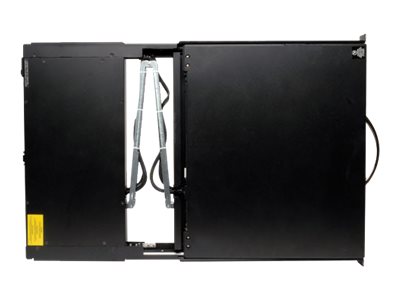

Tripp Lite's B070-016-19 KVM Switch gives you a rack-mountable full keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it's the optimal solution for controlling up to 16 computers/servers.
The B070-016-19 uses inexpensive, user-supplied Cat5e/6/6a and a Server Interface Unit so you can control computers/servers located up to 100 ft. away from the switch. You can switch easily between the 16 ports using an on-screen display (OSD) or keyboard hot key commands. Multi-level password protection prohibits unauthorized users from accessing the connected computers. The built-in 19" LCD screen supports video resolutions up to 1366 x 768.
Add a Tripp Lite B051-000 IP Remote Access Unit and you'll be able to connect to your servers from anywhere in the world. The B070-016-19 stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Heavy-duty steel housing stands up to frequent use. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Specifications
General
| Product code | B070-016-19 |
| Brand | EATON |
| EAN | B070-016-19 |
| Display / Form Factor | Rack-mountable |
| Display / Diagonal Size | 19 |
| Display / Native Resolution | 1366 x 768 |
| Display / V-Sync Rate at Max Res. | 75 |
| Input Device / Type | Touchpad |
| Input Device / Type | ClickPad |
| Networking / Type | KVM switch |
| Dimensions & Weight / Width | 48.3 |
| Dimensions & Weight / Depth | 68.1 |
| Dimensions & Weight / Height | 4.3 |
| Dimensions & Weight / Weight | 16.3 |
| Miscellaneous / Colour | Black |
| System Requirements / OS Required | Microsoft Windows |
| System Requirements / OS Required | Microsoft Windows 95 |
| System Requirements / OS Required | Microsoft Windows XP |
| System Requirements / OS Required | Windows 10 |
| System Requirements / OS Required | Ubuntu 18.04 |
| System Requirements / OS Required | Microsoft Windows XP |
| System Requirements / OS Required | Google Chrome OS |
| System Requirements / OS Required | Microsoft Windows Server 2003 |
| System Requirements / OS Required | BSD/OS |
| System Requirements / OS Required | Microsoft Windows XP 64-bit Edition |
| System Requirements / OS Required | Microsoft Windows Vista / XP |
| System Requirements / OS Required | Microsoft Windows Millennium Editie |
| System Requirements / OS Required | Microsoft Windows XP |
| System Requirements / OS Required | Microsoft Windows Server 2003 |
| Service & Support / Type | 1-year warranty |
| Networking / Ports Qty | 16 |
| Product Line | Eaton Tripp Lite Series |
| Model | 16-Port Rack Console Cat5 KVM Switch 1U RM 19" LCD Rackmount |
| Brand | Tripp Lite |
| Manufacturer | Eaton |
| Verpakte hoeveelheid | 1 |
| Display / Interface | DisplayPort |
| TV Tuner / TV Tuner Presence | No |
| Display / Diagonal Size (metric) | 48.3 |
| Miscellaneous / Colour Category | Black |
| Display / Type | KVM console |
