Product description

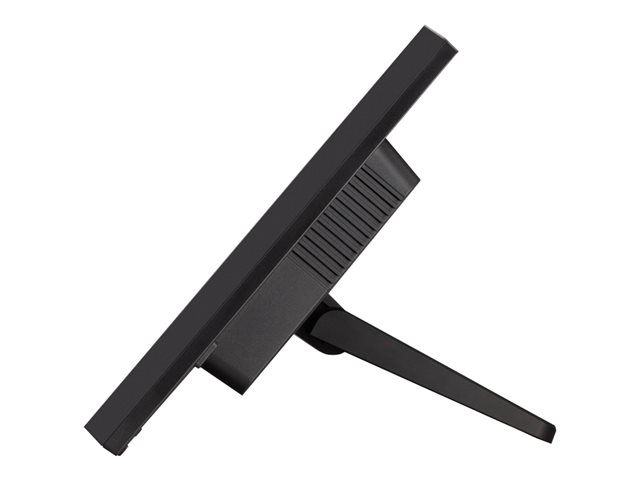

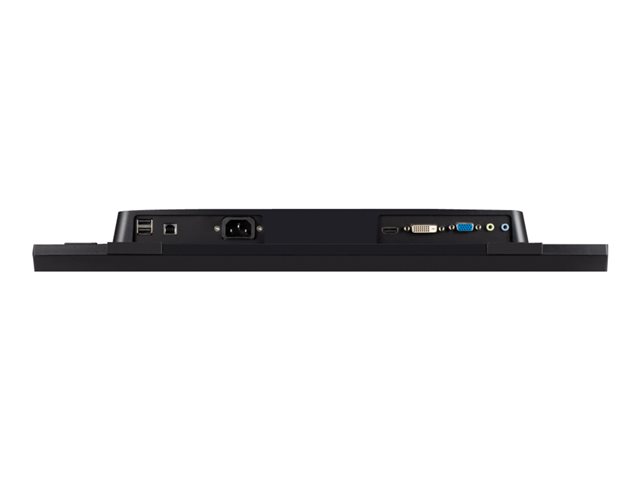

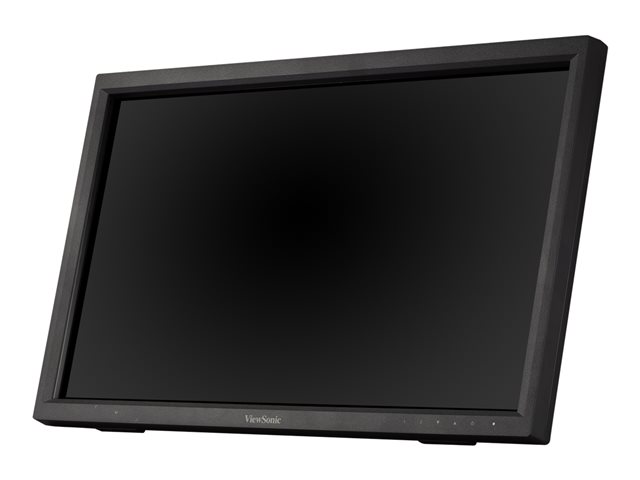

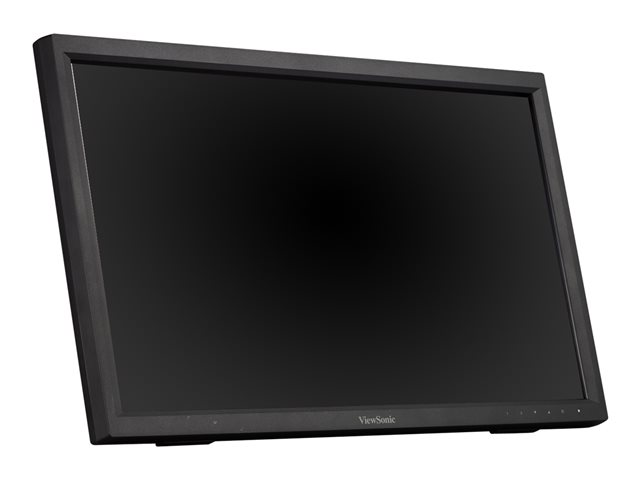

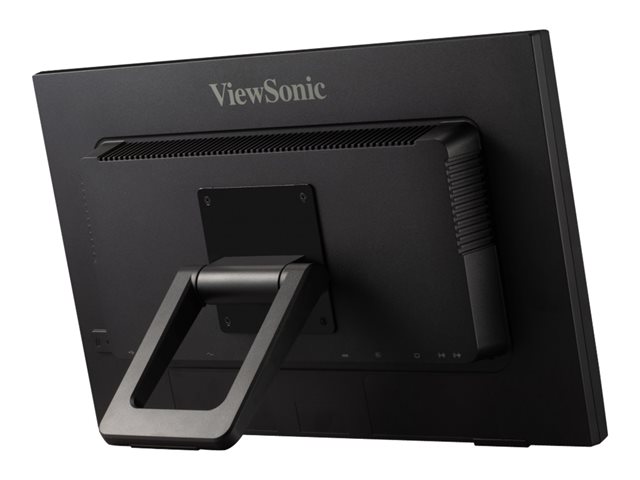

The ViewSonic TD2223 is a 22" IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2223 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2223 is equipped with VGA, HDMI, DVI and USB connectivity.
Specifications
General
| Product code | TD2223 |
| Brand | VIEWSONIC |
| EAN | TD2223 |
| Display / Form Factor | Desktop |
| Display / Diagonal Size | 22 |
| Display / Native Resolution | 1920 x 1080 |
| Display / V-Sync Rate at Max Res. | 75 |
| Display / Image Brightness | 250 |
| Display / Image Contrast Ratio | 1000:1 |
| Display / Horizontal Viewing Angle | 170 |
| Display / Vertical Viewing Angle | 160 |
| Input Device / Type | Touch-screen |
| Audio Output / Type | Speaker(s) |
| Dimensions & Weight / Width | 52.1 |
| Dimensions & Weight / Depth | 10.1 |
| Dimensions & Weight / Height | 33.4 |
| Dimensions & Weight / Weight | 4.5 |
| Miscellaneous / Compliant Standards | TUV Rheinland Eye Comfort Certification (5-star) |
| Miscellaneous / Compliant Standards | WEEE |
| Miscellaneous / Compliant Standards | CCC |
| Miscellaneous / Compliant Standards | Mexico Energy label |
| Miscellaneous / Compliant Standards | REACH |
| Miscellaneous / Compliant Standards | CEC |
| Miscellaneous / Compliant Standards | UkrSEPRO |
| Miscellaneous / Compliant Standards | ERP |
| Miscellaneous / Compliant Standards | CECP |
| Miscellaneous / Compliant Standards | EAC |
| Miscellaneous / Compliant Standards | China Energy Label |
| Miscellaneous / Compliant Standards | China RoHS |
| Miscellaneous / Compliant Standards | GEMS |
| Miscellaneous / Compliant Standards | FCC Klasse B-gecertifieerd |
| Miscellaneous / Compliant Standards | BSMI |
| Miscellaneous / Compliant Standards | GEMS |
| Miscellaneous / Compliant Standards | ICES-003 |
| Miscellaneous / Compliant Standards | CE/EMC |
| Miscellaneous / Compliant Standards | Mexico Energy label |
| Miscellaneous / Compliant Standards | Mexico CoC |
| Miscellaneous / Compliant Standards | CB |
| Miscellaneous / Compliant Standards | CCC |
| System Requirements / OS Required | Ubuntu 18.04 |
| System Requirements / OS Required | Google Chrome OS |
| System Requirements / OS Required | Android |
| System Requirements / OS Required | Microsoft Windows 7 / 8 / 10 |
| System Requirements / OS Required | Apple macOS 10.12 or later |
| Service & Support / Type | 3-year warranty |
| Product Line | ViewSonic |
| Model | TD2223 |
| Brand | ViewSonic |
| Manufacturer | ViewSonic |
| Verpakte hoeveelheid | 1 |
| Dimensions & Weight (Shipping) / Shipping Width | 58 |
| Dimensions & Weight (Shipping) / Shipping Depth | 16.4 |
| Dimensions & Weight (Shipping) / Shipping Height | 40.5 |
| Dimensions & Weight (Shipping) / Shipping Weight | 6 |
| Display / Response Time | 5 |
| Display / TFT Technology | TN |
| Display / Interface | DisplayPort |
| Display / Interface | DisplayPort |
| Display / Interface | HDMI |
| Power / Energy Class | Class E |
| Display / Dynamic Contrast Ratio | 20000000:1 |
| Display / Display Position Adjustments | Tilt |
| TV Tuner / TV Tuner Presence | No |
| Chassis / Built-in USB Hub | Yes |
| Environmental Standards / EPEAT Compliant | Yes |
| Environmental Standards / EPEAT Level | EPEAT Silver |
| Environmental Standards / ENERGY STAR Certified | Yes |
| Display / Diagonal Size (metric) | 55.9 |
| Display / LCD Backlight Technology | LED backlight |
| Display / Colour Support | 16.7 million colours (8-bit) |
| Miscellaneous / Colour Category | Black |
| Display / Type | LED-backlit LCD monitor |
| Display / Touchscreen | Yes (10-point multi-touch) |
| Display / Video Format | Full HD (1080p) |
