Product description

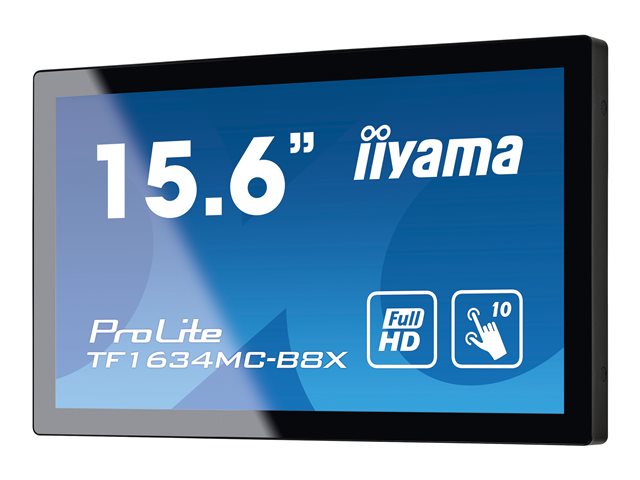

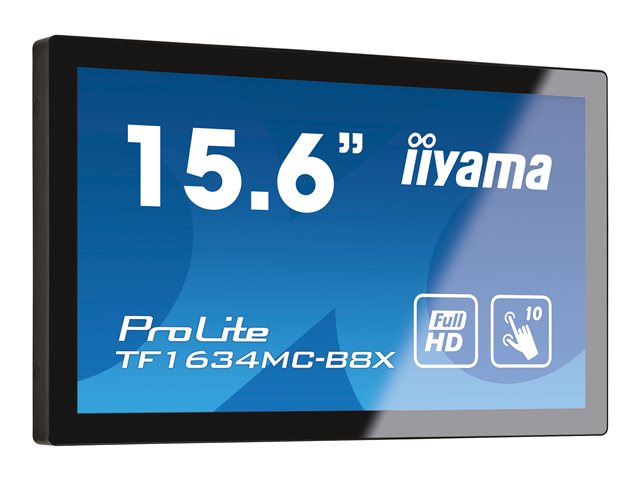

The ProLite TF1634MC-B8X uses projective capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS Panel Technology and Full HD (1920x1080) resolution, it offers natural, highly accurate colors and wide viewing angles. The Touch-Through-Glass function guarantees a seamless and accurate touch response for interactive behind-glass-retail applications. In addition to the superb image quality, the screen comes with an IP65 rating, which means the screen and bezel is totally dust and water resistant, making it a perfect solution for demanding kiosk installations. For ease of integration, the TF1634MC-B8X can be equipped with optional external mounting brackets (OMK1-1) making it an ideal solution for kiosk integrators and Instore Retail.
Specifications
General
| Product code | TF1634MC-B8X |
| Brand | IIYAMA |
| EAN | TF1634MC-B8X |
| Display / Form Factor | Open frame |
| Display / Diagonal Size | 15.6 |
| Display / Pixel Pitch | 0.17925 |
| Display / Native Resolution | 1920 x 1080 |
| Display / V-Sync Rate at Max Res. | 60 |
| Display / Image Brightness | 450 |
| Display / Image Contrast Ratio | 700:1 |
| Display / Horizontal Viewing Angle | 178 |
| Display / Vertical Viewing Angle | 178 |
| Input Device / Type | Alphanumeric keyboard |
| Audio Output / Type | None |
| Dimensions & Weight / Width | 38.1 |
| Dimensions & Weight / Depth | 4.6 |
| Dimensions & Weight / Height | 23.05 |
| Dimensions & Weight / Weight | 2 |
| Miscellaneous / Colour | Black |
| Miscellaneous / Colour | Mat |
| Miscellaneous / Compliant Standards | CCC |
| Miscellaneous / Compliant Standards | REACH SvHC |
| Miscellaneous / Compliant Standards | TUV Rheinland Flicker Free Certification |
| Miscellaneous / Compliant Standards | WEEE |
| Miscellaneous / Compliant Standards | cULus |
| Miscellaneous / Compliant Standards | REACH |
| Miscellaneous / Compliant Standards | ERP |
| Miscellaneous / Compliant Standards | EAC |
| Miscellaneous / Compliant Standards | VESA DDCi |
| Product Line | iiyama ProLite |
| Model | TF1634MC-B8X |
| Brand | Iiyama |
| Manufacturer | iiyama |
| Verpakte hoeveelheid | 1 |
| Dimensions & Weight (Shipping) / Shipping Width | 45.5 |
| Dimensions & Weight (Shipping) / Shipping Depth | 29 |
| Dimensions & Weight (Shipping) / Shipping Height | 36.5 |
| Dimensions & Weight (Shipping) / Shipping Weight | 6.6 |
| Display / Response Time | 25 |
| Display / TFT Technology | IPS |

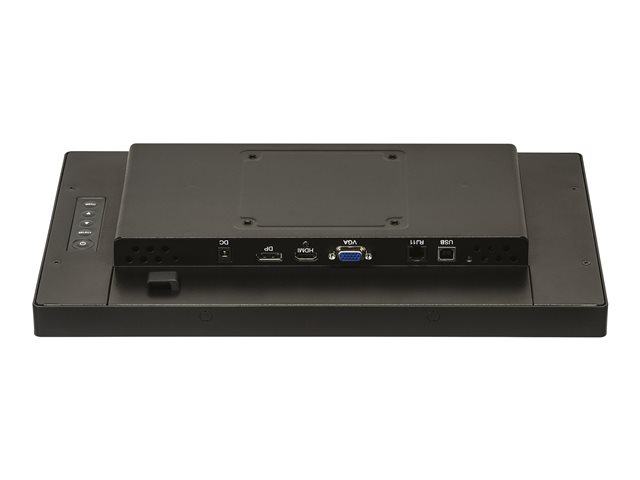

| Display / Interface | HDMI |
| Display / Interface | DisplayPort |
| Display / Interface | USB-C |
| Power / Energy Class | Class F |
| TV Tuner / TV Tuner Presence | No |
| Display / Diagonal Size (metric) | 39.5 |
| Display / LCD Backlight Technology | LED backlight |
| Display / Colour Support | 16.2 million colours |
| Miscellaneous / Colour Category | Black |
| Display / Type | LED-backlit LCD monitor |
| Display / Touchscreen | Yes (10-point multi-touch) |
| Display / Video Format | Full HD (1080p) |
