Product description

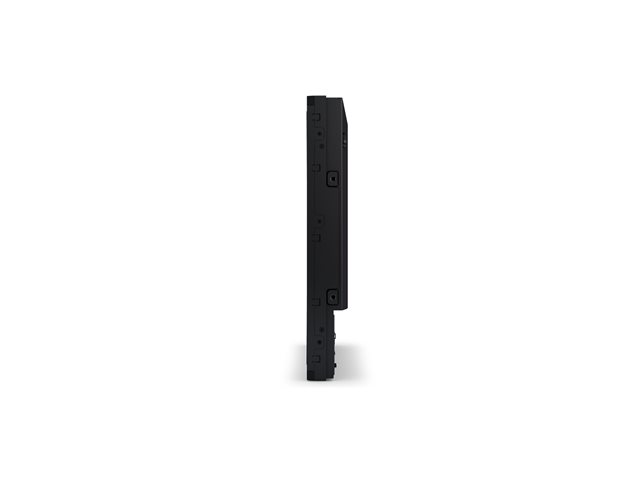

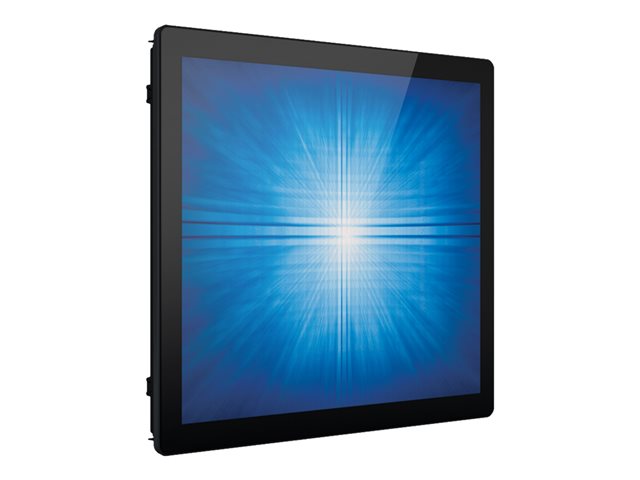

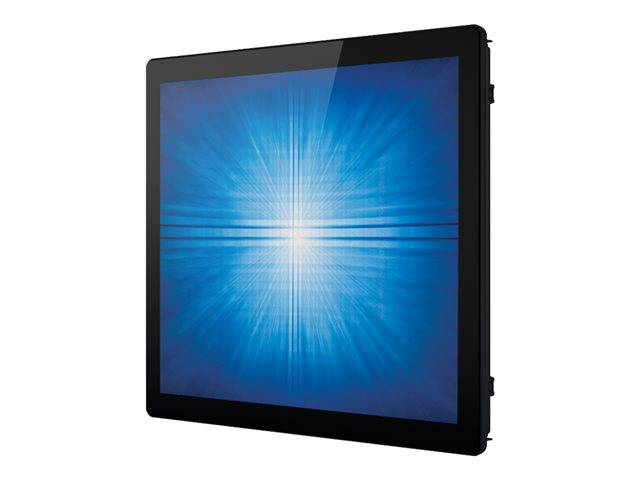

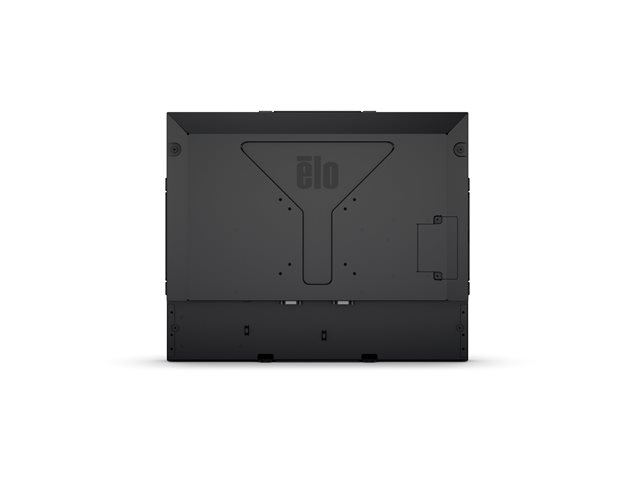

The Elo 1991L 19" open-frame LCD touch display features a slim design and narrow outside dimensions due to the state-of-the art energy-saving LED backlight, using less electricity to operate and generating less heat. Featuring a brilliant wide viewing angle panel, the 1991L instantly grabs and holds the users' attention for kiosks, casino and amusement, retail self-service, and industrial floor automation. This compact touch display is "designed for touch" with proven Elo expertise and reliability built in. The 1991L provides stable "drift-free" operation with outstanding image clarity and light transmission - for accurate touch responses and vivid images. The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Long-lasting product availability can be expected as the design and tooling is controlled by Elo specifications.
The 1991L is available with a choice of industry-leading touch technologies, in both single touch and multi touch versions. This seamless zero-bezel 19" multi-touch display is available with the latest projected capacitive (PCAP) 2GS (two glass solution) technology that delivers both a ten touch "tablet like" interactive experience along with thru-glass functionality - both modes support single or dual latex gloves as well as cloth gloves. Standard bezel, single-touch display options include AccuTouch five-wire resistive, IntelliTouch SAW or SecureTouch anti-vandal SAW. The 1991L open-frame LCD touch display provides an economical solution for system integrators and VARs.
Specifications
General
| Product code | E296720 |
| Brand | ELO |
| EAN | E296720 |
| Display / Form Factor | Open frame |
| Display / Diagonal Size | 19 |
| Display / Native Resolution | 1280 x 1024 |
| Display / V-Sync Rate at Max Res. | 60 |
| Display / Image Brightness | 250 |
| Display / Image Contrast Ratio | 1000:1 |
| Display / Horizontal Viewing Angle | 178 |
| Display / Vertical Viewing Angle | 178 |
| Input Device / Type | Touch-screen |
| Audio Output / Type | None |
| Dimensions & Weight / Width | 41.47 |
| Dimensions & Weight / Depth | 5 |
| Dimensions & Weight / Height | 34.27 |
| Dimensions & Weight / Weight | 4.6 |
| Miscellaneous / Colour | Wood grain |
| Miscellaneous / Compliant Standards | CCC |
| Miscellaneous / Compliant Standards | CB |
| Miscellaneous / Compliant Standards | UL 62368 |
| Miscellaneous / Compliant Standards | REACH SvHC |
| Miscellaneous / Compliant Standards | TUV Rheinland Flicker Free Certification |
| Miscellaneous / Compliant Standards | CCC |
| Miscellaneous / Compliant Standards | WEEE |
| Miscellaneous / Compliant Standards | IP65 |
| Miscellaneous / Compliant Standards | EAC |
| Miscellaneous / Compliant Standards | China RoHS |
| Miscellaneous / Compliant Standards | GEMS |
| Miscellaneous / Compliant Standards | CoC |
| Miscellaneous / Compliant Standards | IK07 |
| Miscellaneous / Compliant Standards | cUL |
| Miscellaneous / Compliant Standards | TUV |
| Miscellaneous / Compliant Standards | VCCI |
| Miscellaneous / Compliant Standards | BSMI |
| Miscellaneous / Compliant Standards | cUL |
| Miscellaneous / Compliant Standards | CB |
| Miscellaneous / Compliant Standards | CCC |
| Service & Support / Type | 3-year warranty |
| Product Line | Elo |
| Model | 1991L |
| Country Kits | Worldwide |
| Brand | Elo |
| Manufacturer | Elo Touch Solutions |
| Verpakte hoeveelheid | 1 |
| Dimensions & Weight (Shipping) / Shipping Width | 52.6 |
| Dimensions & Weight (Shipping) / Shipping Depth | 17.4 |
| Dimensions & Weight (Shipping) / Shipping Height | 45 |
| Dimensions & Weight (Shipping) / Shipping Weight | 7.4 |
| Display / Response Time | 14 |
| Display / Interface | DisplayPort |
| Display / Interface | DisplayPort |
| Display / Interface | USB-C |
| TV Tuner / TV Tuner Presence | No |
| Display / Diagonal Size (metric) | 48.3 |
| Display / LCD Backlight Technology | LED backlight |
| Display / Colour Support | 16.7 million colours |
| Miscellaneous / Colour Category | Brown |
| Display / Type | LED-backlit LCD monitor |
| Display / Touchscreen | Yes |
