Product description

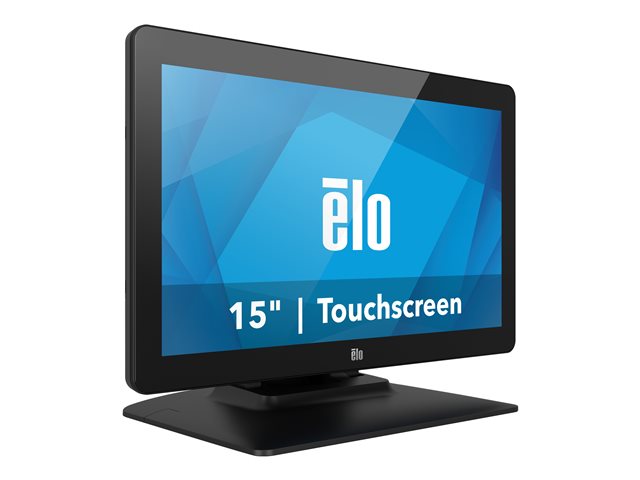

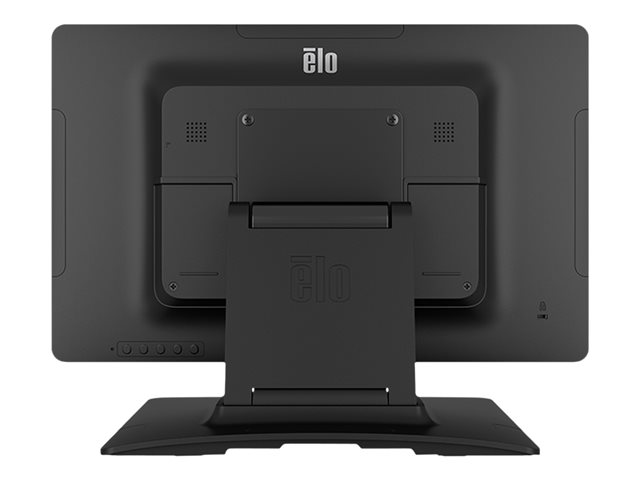

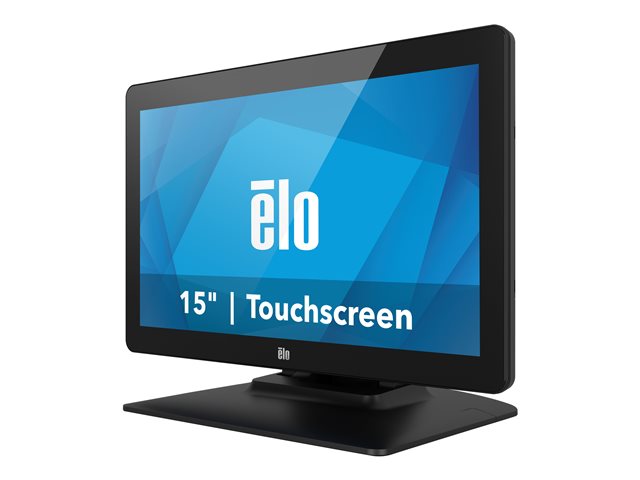

The 1502LM Medical Grade Touchscreen Monitor merges best-in-class touchscreen technology with critical healthcare features, including adherence to IP-22 and IEC 60601-1 standards. Its compact form factor and sleek design make it ideal for patient entertainment, virtual health, patient monitoring, respiratory and medication dispensing devices, and laboratories.
With a full line of touch technologies and display solutions, Elo can customize products for almost any medical device including ventilators, anesthesia machines, patient monitors and medication dispensers. From patient rooms to laboratories and anywhere healthcare is provided, Elo products are well-suited for medical applications where consistent and long-lasting quality and touch performance are critical.
Specifications
General
| Product code | E542617 |
| Brand | ELO |
| EAN | E542617 |
| Display / Form Factor | Desktop |
| Display / Diagonal Size | 15.6 |
| Display / Native Resolution | 1920 x 1080 |
| Display / V-Sync Rate at Max Res. | 60 |
| Display / Image Brightness | 250 |
| Display / Image Contrast Ratio | 700:1 |
| Display / Horizontal Viewing Angle | +80 / -80 |
| Display / Vertical Viewing Angle | +80 / -80 |
| Input Device / Type | Touch-screen |
| Audio Output / Type | Speaker(s) |
| Dimensions & Weight / Width | 38.696 |
| Dimensions & Weight / Depth | 19.912 |
| Dimensions & Weight / Height | 28.465 |
| Dimensions & Weight / Weight | 3.08 |
| Miscellaneous / Colour | Wood grain |
| Miscellaneous / Compliant Standards | CCC |
| Miscellaneous / Compliant Standards | CB |
| Miscellaneous / Compliant Standards | REACH SvHC |
| Miscellaneous / Compliant Standards | TUV Rheinland Flicker Free Certification |
| Miscellaneous / Compliant Standards | IEC 60601-1 4th Edition |
| Miscellaneous / Compliant Standards | CCC |
| Miscellaneous / Compliant Standards | WEEE |
| Miscellaneous / Compliant Standards | REACH |
| Miscellaneous / Compliant Standards | E-Standby |
| Miscellaneous / Compliant Standards | IP22 |
| Miscellaneous / Compliant Standards | EAC |
| Miscellaneous / Compliant Standards | China RoHS |
| Miscellaneous / Compliant Standards | GEMS |
| Miscellaneous / Compliant Standards | BIS |
| Miscellaneous / Compliant Standards | IK07 |
| Miscellaneous / Compliant Standards | cUL |
| Miscellaneous / Compliant Standards | VCCI |
| Miscellaneous / Compliant Standards | BSMI |
| Miscellaneous / Compliant Standards | EEI |
| Miscellaneous / Compliant Standards | cUL |
| Miscellaneous / Compliant Standards | NOM |
| Miscellaneous / Compliant Standards | CB |
| Miscellaneous / Compliant Standards | CCC |
| Service & Support / Type | 3-year warranty |
| Product Line | Elo |
| Model | 1502LM |
| Brand | Elo |
| Manufacturer | Elo Touch Solutions |
| Verpakte hoeveelheid | 1 |
| Dimensions & Weight (Shipping) / Shipping Width | 45.1 |
| Dimensions & Weight (Shipping) / Shipping Depth | 34.4 |
| Dimensions & Weight (Shipping) / Shipping Height | 20.4 |
| Dimensions & Weight (Shipping) / Shipping Weight | 5.1 |
| Display / Response Time | 30 |
| Display / Interface | DisplayPort |
| Display / Interface | VGA (DB-15) |
| Display / Interface | USB-C |
| TV Tuner / TV Tuner Presence | No |
| Display / Diagonal Size (metric) | 41.91 |
| Display / LCD Backlight Technology | LED backlight |
| Display / Colour Support | 16.7 million colours |
| Miscellaneous / Colour Category | Brown |
| Product Edition | Medical Grade |
| Display / Type | LED-backlit LCD monitor |
| Display / Touchscreen | Yes (10-point multi-touch) |
| Display / Video Format | Full HD (1080p) |
