Product description

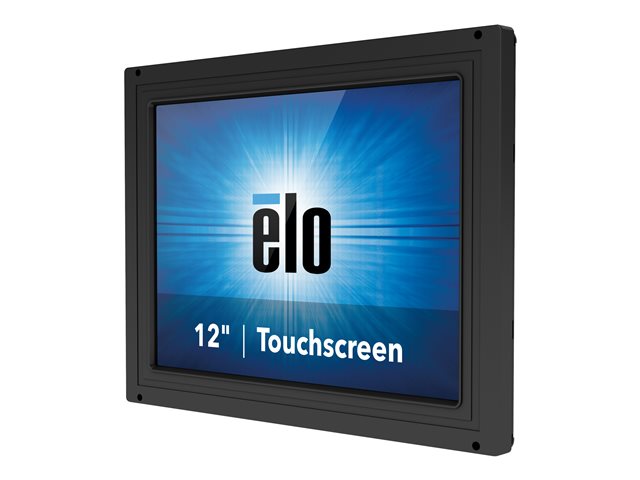

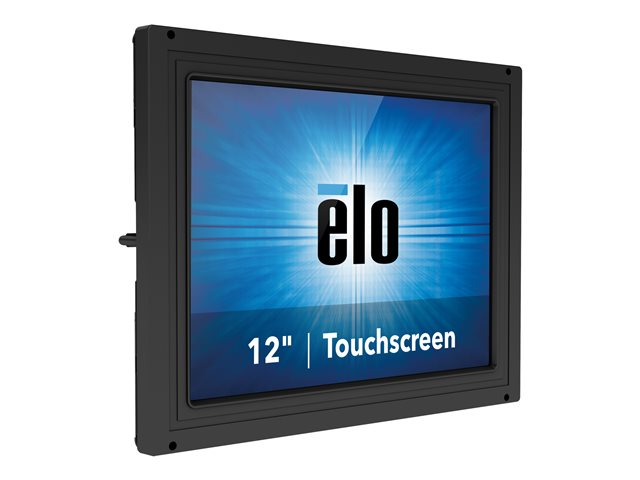

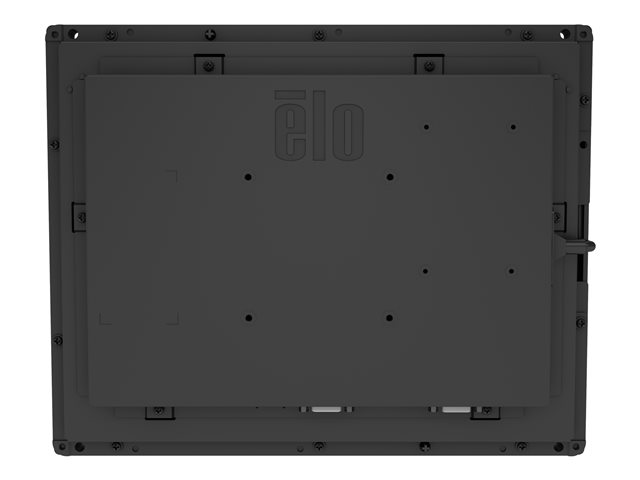

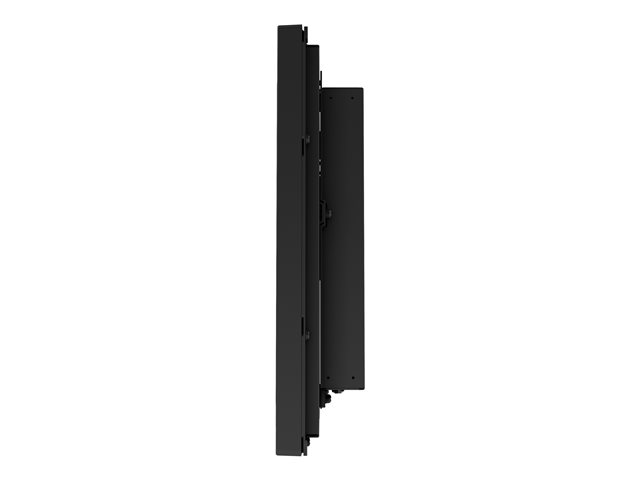

The Elo 1291L 12-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions thanks to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch with proven Elo expertise and reliability built in. The 1291L provides stable, drift-free operation with outstanding image clarity and light transmission - for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users' attention for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Specifications
General
| Product code | E329452 |
| Brand | ELO |
| EAN | E329452 |
| Display / Form Factor | Open frame |
| Display / Diagonal Size | 12.1 |
| Display / Native Resolution | 800 x 600 |
| Display / V-Sync Rate at Max Res. | 60 |
| Display / Image Brightness | 450 |
| Display / Image Contrast Ratio | 1500:1 |
| Display / Horizontal Viewing Angle | +89 / -89 |
| Display / Vertical Viewing Angle | +89 / -89 |
| Input Device / Type | Touch-screen |
| Audio Output / Type | None |
| Dimensions & Weight / Width | 30.25 |
| Dimensions & Weight / Depth | 4.98 |
| Dimensions & Weight / Height | 24.22 |
| Dimensions & Weight / Weight | 2.65 |
| Miscellaneous / Colour | Wood grain |
| Miscellaneous / Compliant Standards | CCC |
| Miscellaneous / Compliant Standards | CB |
| Miscellaneous / Compliant Standards | TUV Rheinland Flicker Free Certification |
| Miscellaneous / Compliant Standards | CCC |
| Miscellaneous / Compliant Standards | WEEE |
| Miscellaneous / Compliant Standards | China RoHS |
| Miscellaneous / Compliant Standards | GEMS |
| Miscellaneous / Compliant Standards | CoC |
| Miscellaneous / Compliant Standards | cUL |
| Miscellaneous / Compliant Standards | TUV |
| Miscellaneous / Compliant Standards | VCCI |
| Miscellaneous / Compliant Standards | BSMI |
| Miscellaneous / Compliant Standards | cUL |
| Miscellaneous / Compliant Standards | DisplayPort 1.1a |
| Miscellaneous / Compliant Standards | IMERC |
| Miscellaneous / Compliant Standards | CB |
| Miscellaneous / Compliant Standards | CCC |
| Service & Support / Type | 3-year warranty |
| Product Line | Elo |
| Model | 1291L |
| Brand | Elo |
| Manufacturer | Elo Touch Solutions |
| Verpakte hoeveelheid | 1 |
| Display / Response Time | 25 |
| Display / Interface | DisplayPort |
| Display / Interface | DisplayPort |
| Display / Interface | USB-C |
| Power / Energy Class | Class B |
| TV Tuner / TV Tuner Presence | No |
| Display / Diagonal Size (metric) | 30.7 |
| Display / LCD Backlight Technology | LED backlight |
| Display / Colour Support | 16.2 million colours |
| Miscellaneous / Colour Category | Brown |
| Power / Energy Consumption per Year | 20 |
| Display / Type | LED-backlit LCD monitor |
| Display / Touchscreen | Yes |
